Salus actuator - closed without power - actuator T30NC
SALUS T30NC actuator (230 V, normally closed) – thermal actuator for the manifold of your underfloor heating system.
- Normally closed (NC) – the standard for underfloor heating
- 230 V operating voltage
- 5-year manufacturer warranty
- Matches the room thermostats in our range
SALUS T30NC actuator for the heating manifold
The T30NC is a thermal actuator driven by the room thermostat. It opens and closes the valve of one heating circuit at the manifold.
- Normally closed (NC) version
- Operating voltage 230 V
- 5-year manufacturer warranty
- Can be combined with the KL06 wiring centre
Salus actuators are the first choice wherever a complete solution of actuator and working element from a single source is required. Thanks to the continuous development and integration of numerous innovations, they are always up-to-date with the latest technical status. The sales partner always benefits from this. Only quick access to creative developments and high-tech production guarantee a product that is fully developed in all respects for the needs-based temperature control.
Salus actuators take over a wide range of control and control tasks as a two-point actuator (up/to). The heating of the stretching material work element takes place with the operating voltage applied. The valve opens silently after the dead time has elapsed by means of lifting movement of the working element. Without operating voltage, the working element is no longer heated and the actuator closes.
General Properties
- Easy to install
- Adaptive stroke length 4mm max
- Low Consumption 2W
- 100N Spring Force
- High-quality wax element
- Easy closing and opening display
- Available in 230Vac
- M30*1.5 Connection thread
- Silent
- Assembly-friendly
- Variable use
- Application-optimized
- Economical
- Durable
- tested and protected

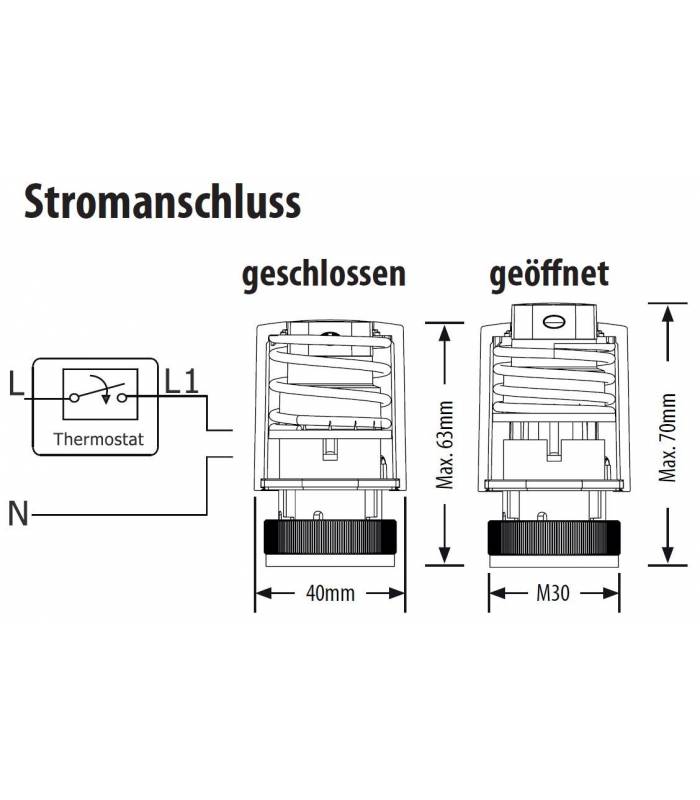

- Dimensions (WxHxD): 40x70x40 mm
Delivery:
- Actuator
- Guide
Frequently asked questions: Salus T30NC actuator
What does „normally closed“ (NC) mean?
Without applied voltage the valve stays closed. It only opens when the room thermostat reports demand for heat and energises the actuator. This is the usual configuration for underfloor heating.
Will the T30NC fit my manifold?
The actuator is designed for the common valve connections. Please check the thread size of your manifold – if you are unsure, contact us before ordering.
How many actuators do I need?
As a rule, one actuator per heating circuit. Large rooms with several circuits can be operated with several actuators wired in parallel to one thermostat.
Any questions before you order? ALM Controls e.K. in Bad Camberg, Germany, answers personally by e-mail or phone – usually within 24 hours. Shipping with GLS, free of charge within Germany for orders of 200 € and above.
